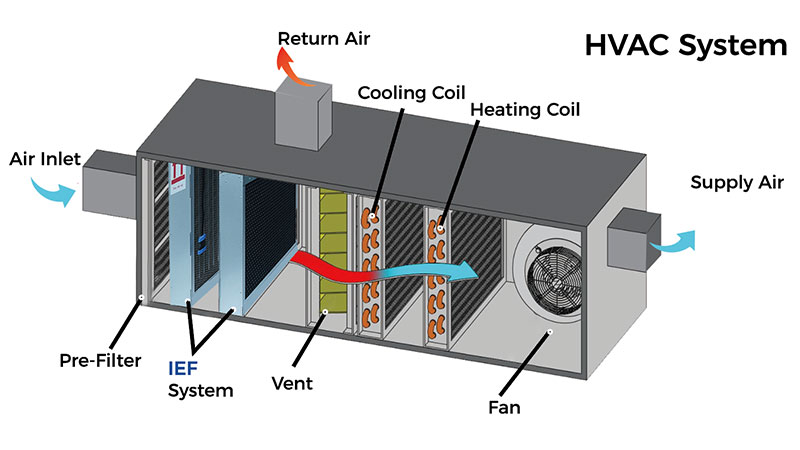

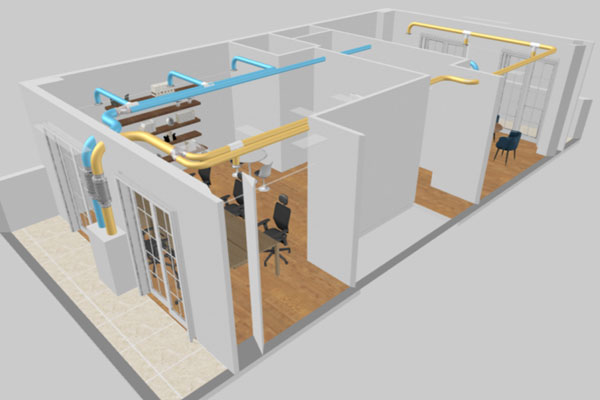

The IEF module is a component of the central air handler, located near the air intake. The air intake draws in ambient air, which is then processed and purified by the IEF module. The purified air is then sent back through the supply fan to different areas of the HVAC system.

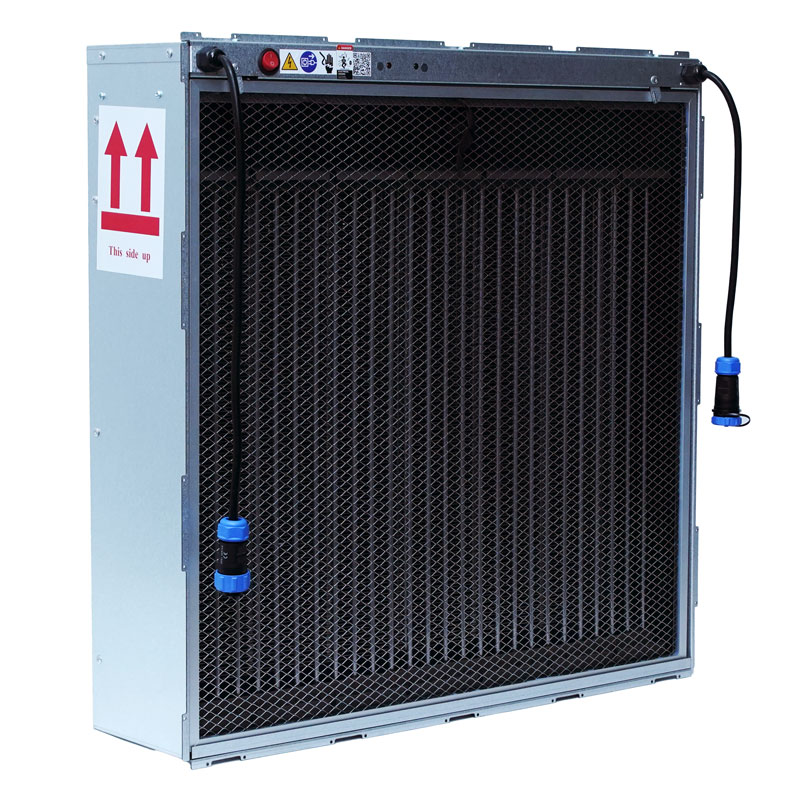

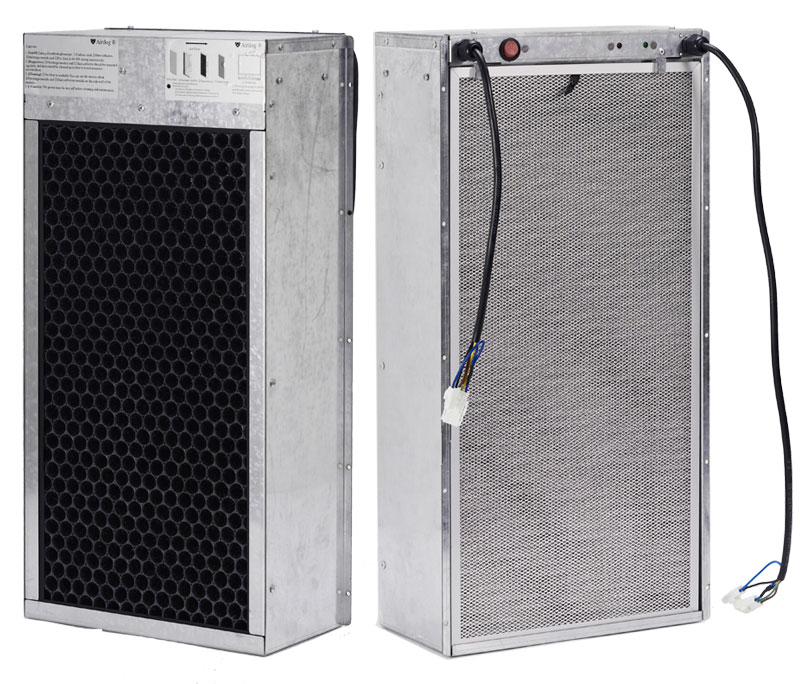

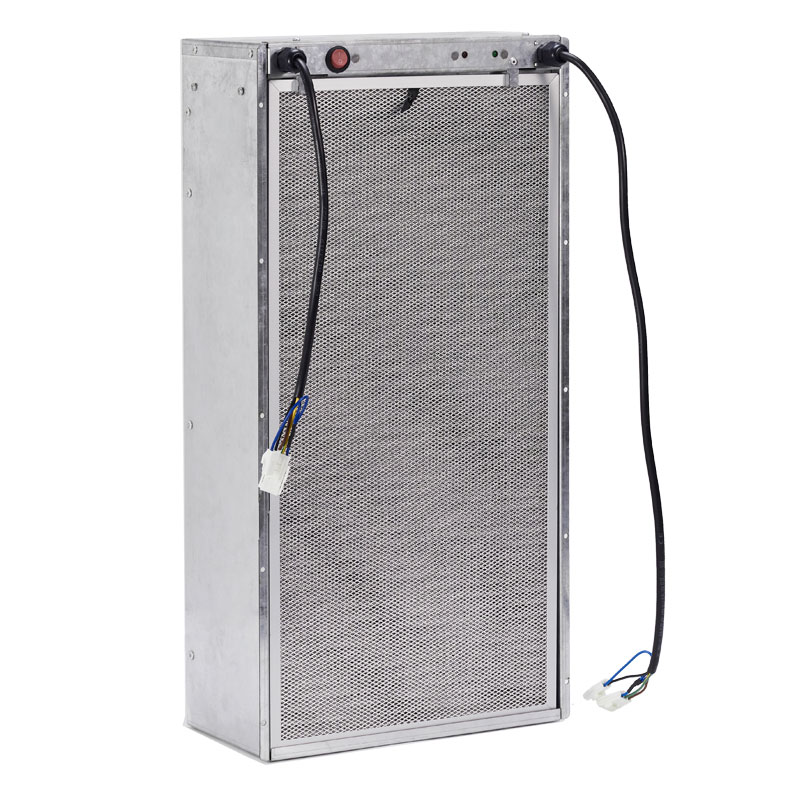

Model | IEF 1700 | IEF 3400 |
Voltage | 100-240v 50/60Hz | |
Power | <20W | |
Size | 305*610*150mm | 610*610*150mm |
Product Weight | 10.8kg | 18.8kg |
Package Weight | 12.3kg | 21.5kg |
Package Size | 710*400*250mm | 710*710*250mm |
Error Indication | Short circuit and fault alarm | |
Usage Environment | -10~40℃ 0-90%Rh | |
Cleaning Suggestion | Suggest 6 months, or shorten the cleaning interval based on the usage environment as appropriate. | |
Particle Remove (>0.5um particle) | >96.3% | > 99% |
Virus Remove | 99.99% | 99.99% |
Led Light | Signal led light and power led light | |
Application Scenarios | Air purification in the ventilation systems of homes, hospitals, schools, villas, shopping malls, underground parking lots, and other places. | |

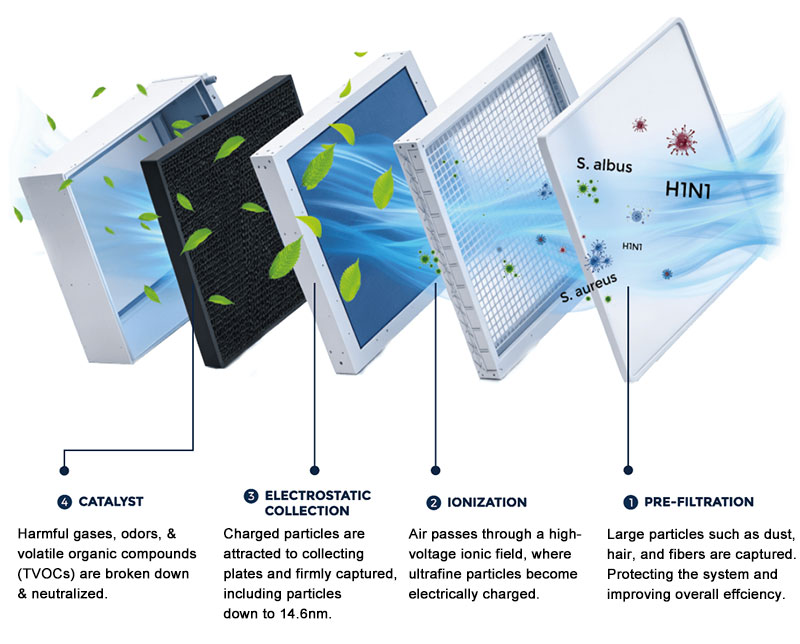

TPA Core Technology: Powered by Airdog’s proprietary ionization and collection system, replacing traditional HEPA with long-lasting, high-efficiency air purification.
Filterless & Washable: No consumable filters required, washable collector plates reduce maintenance and operating costs.
Germ & Virus Elimination: The ionization process effectively inactivates bacteria and viruses, ensuring safer environments for high-traffic and sensitive areas.

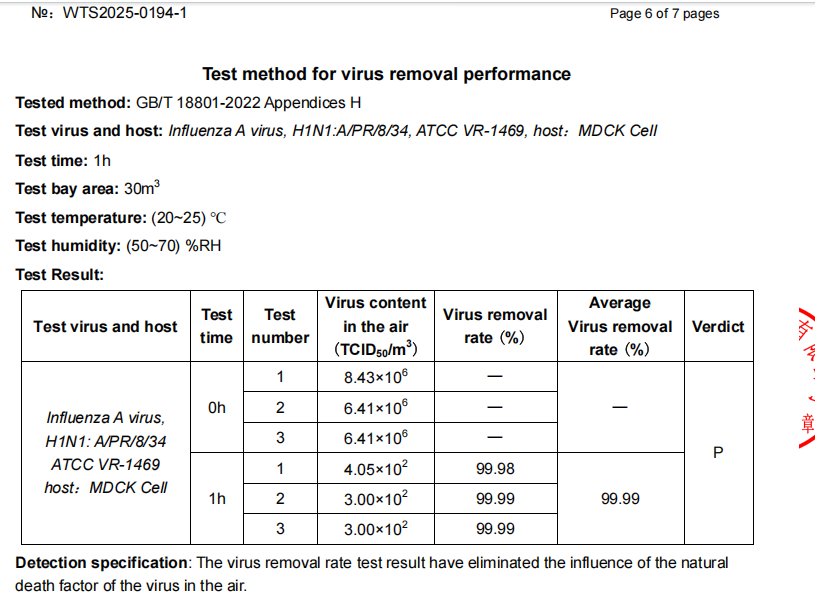

IEF H1N1 virus removal rate: 99.99%

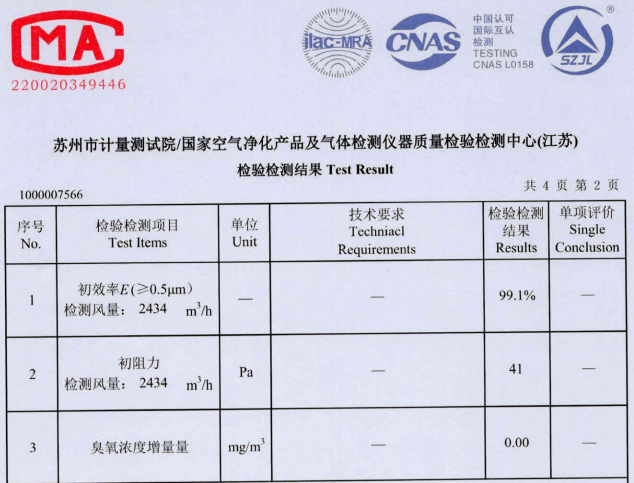

The test standards are as follows:
The air volume tested in this experiment is 2434 m3/h.
The aerosol used for efficiency testing is the KCI solution atomized generation.
For the effect test, the upstream particle concentration: the number of particles with a diameter of ≥ 0.3 um is greater than 1*107 per 5L.
Filter particles with a size of ≥ 0.5um. The filtration efficiency is 99.1%. Under the same environmental and testing conditions, at a wind speed of 2.5m/s, the resistance is 41, and the ozone concentration is 0.
Usually found within the following types of buildings:
Industrial
Commercial
Hotel and Entertainment
Hospital
Data Centers
Larger houses

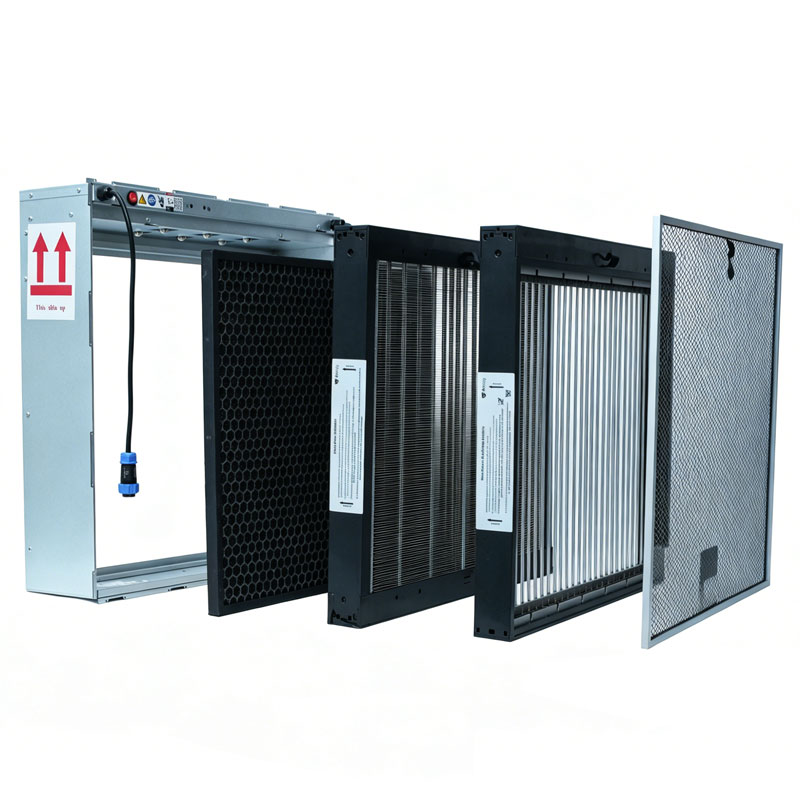

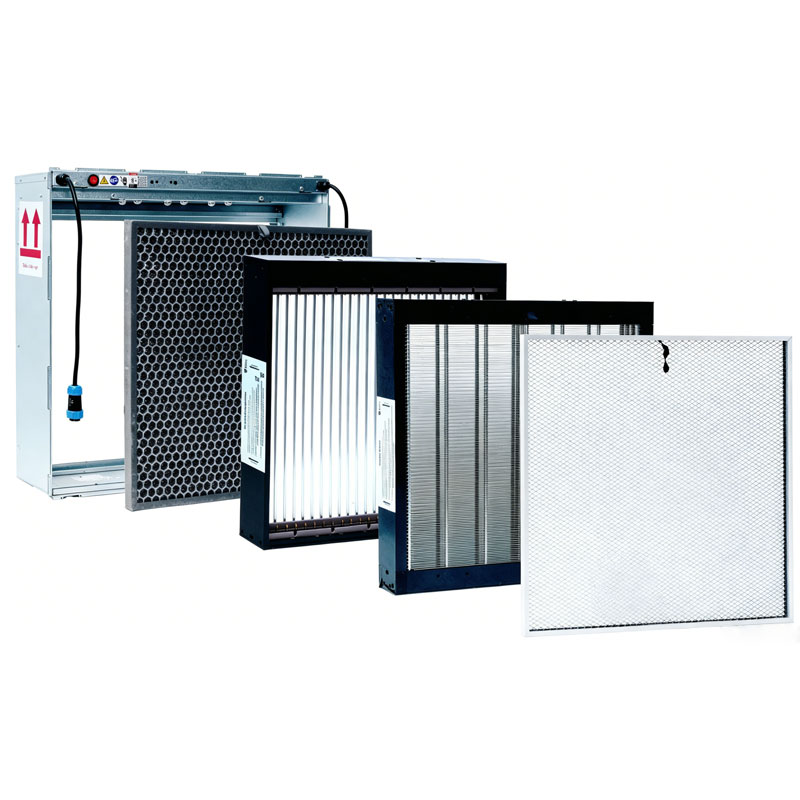

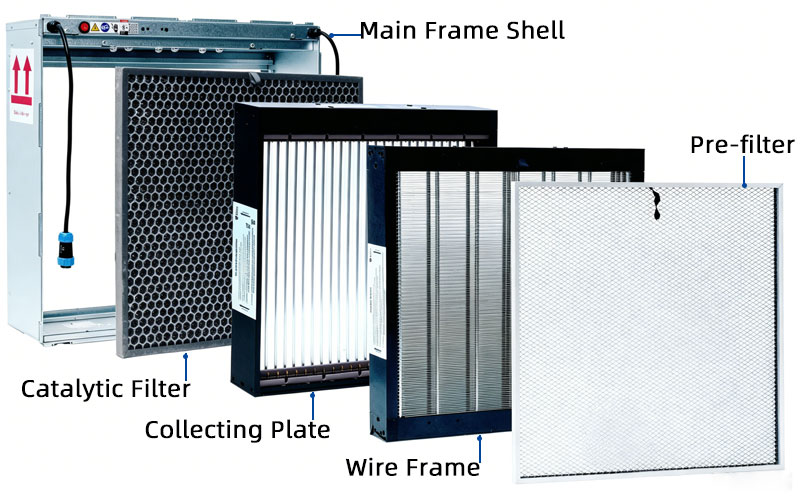

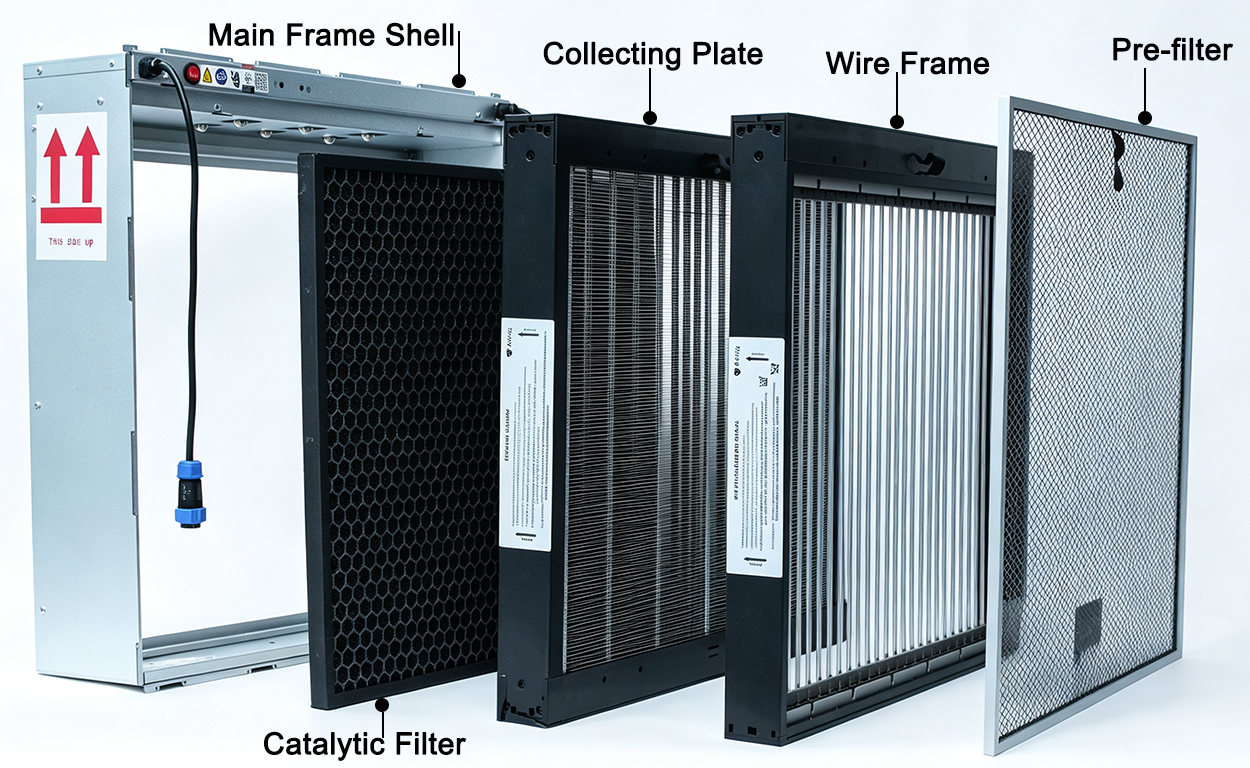

The IEF module consists of four components. They are all very easy to disassemble, the operation is simple, and they are easier to replace and clean.

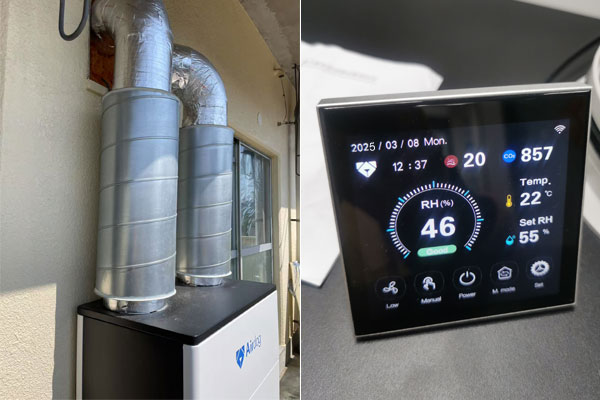

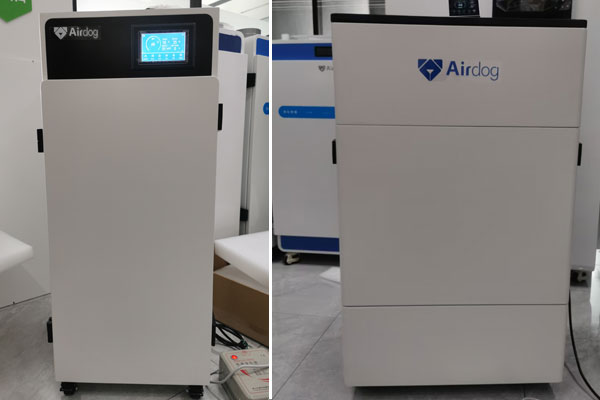

Based on the IEF technology, we have developed cabinet-type purification and dehumidification integrated machines, purification and humidification integrated machines, and the intelligent five-condition control system for the entire house. If you have any design or research and development needs in this area, please feel free to share your ideas and designs with us.
