When people search for TPA technology, they are often trying to understand how it works, how it differs from conventional air filtration, and why Airdog uses TPA as the core technology behind its air purification systems.
TPA® stands for Two-Pole Active filtration technology. It is Airdog's core air purification technology, developed around electrical particle charging, electrostatic collection, airflow management, and reusable collection components.
Unlike conventional mechanical filtration, which primarily relies on filter media to physically capture airborne particles, TPA uses an active electrical process to charge particles and attract them to dedicated collecting plates.
In simple terms:
Charge → Attract → Collect → Clean → Reuse
This principle is at the center of Airdog's approach to reusable air purification.
TPA® stands for Two-Pole Active filtration technology.
The name describes the active electrical principle used in the purification system. Instead of depending only on a passive filter material, TPA uses electrical fields to interact with airborne particles and facilitate their collection.
Airdog developed TPA as the core technology platform for its air purification products. Today, the technology is applied across different Airdog air purification products and applications.
The important point is that TPA is a filtration technology, not simply a product name or a type of disposable filter.
TPA is an active electrostatic air purification technology.

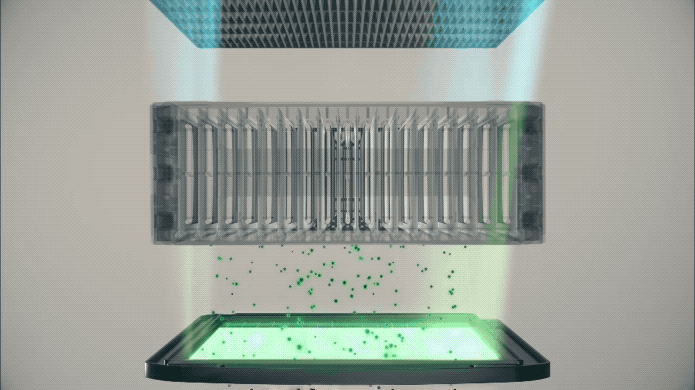

The basic process can be understood in three key stages:
1. Charge airborne particles
Particles passing through the electrical charging area acquire an electrical charge.
2. Attract charged particles
The charged particles then enter an electrical field that directs them toward collection surfaces.
3. Collect and remove particles
The particles are collected on dedicated collection plates inside the purification system.
The collection plates can then be removed, cleaned, and reused according to the product's maintenance instructions.
This creates a fundamentally different maintenance model from many conventional disposable filter systems.
Airdog TPA systems use multiple stages rather than relying on a single filtration mechanism.
A simplified process is:
Pre-Filter → Particle Charging → Ionic Field → Particle Collection → Additional Filtration
The first stage captures larger materials such as hair, pet fur, larger dust particles, and other visible debris.
This helps protect the downstream purification components and prepares the incoming air for the electrical filtration stages.
Airborne particles then pass through an electrical charging area.
The electrical field causes particles to acquire an electrical charge. Once charged, these particles can be influenced by the subsequent electrical collection field.
The charged particles enter an electrical field inside the purification system.
The purpose of this stage is not simply to expose particles to electricity. Rather, the electrical field works together with the charging and collection stages to guide airborne particles toward the collecting surfaces.
The charged particles are attracted to dedicated collecting plates.
This charge-and-collect mechanism is one of the defining characteristics of Airdog's TPA technology.
Instead of relying primarily on a disposable fibrous filter to retain captured particles, TPA uses reusable collection components.
After the electrical collection stages, Airdog systems can use additional filtration or catalyst components depending on the product configuration.
These downstream stages can provide additional treatment for odors and other airborne contaminants.
For this reason, TPA should be understood as a multi-stage air purification architecture, rather than simply an alternative name for a single filter.

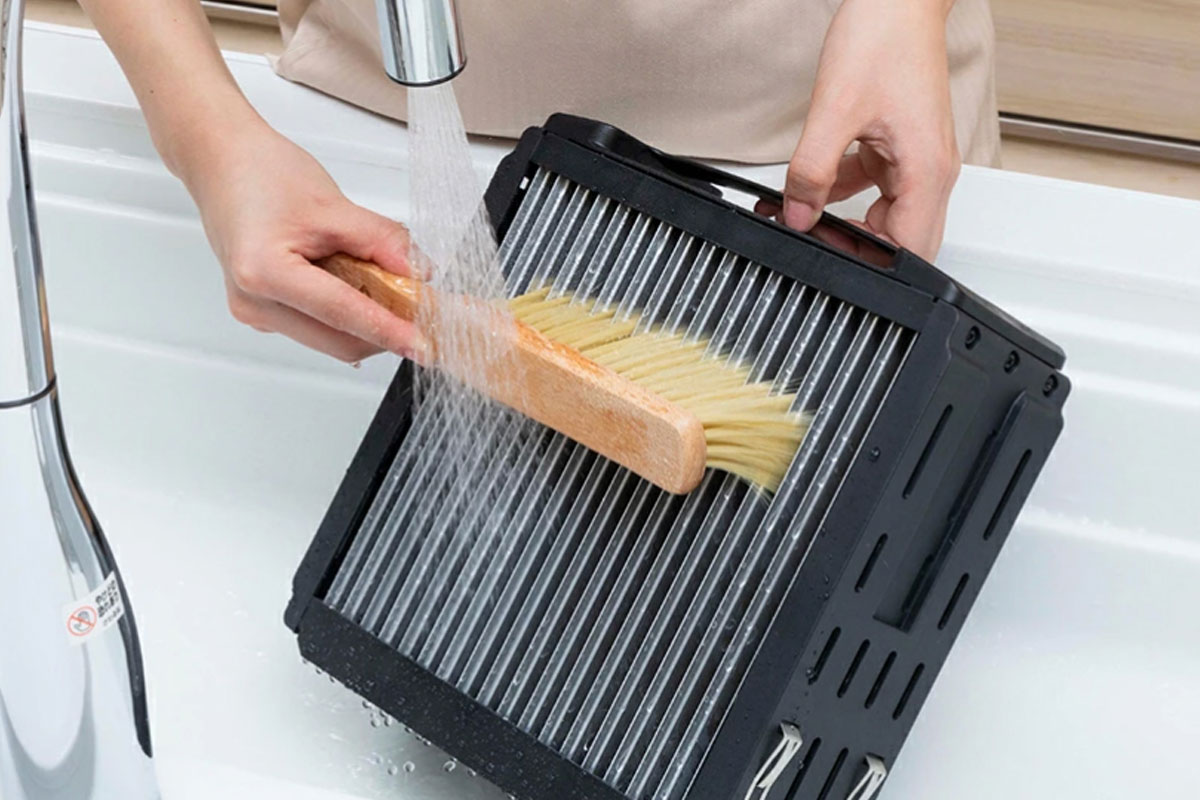

One of the most noticeable characteristics of Airdog TPA technology is its washable collection system.
Conventional disposable filters generally capture particles throughout a fibrous filter medium. As contaminants accumulate, the filter becomes loaded and eventually needs to be replaced.
Airdog's TPA system takes a different approach.
Particles are electrically charged and collected on dedicated collection plates. When the plates become contaminated, they can be removed and cleaned according to the product's maintenance instructions.
The basic maintenance cycle is therefore:
Use → Collect → Wash → Dry → Reuse
This reduces dependence on routinely replacing the primary particle-collection components.
For users and commercial customers, this can also change the long-term maintenance model by reducing recurring disposable-filter consumption.
TPA and HEPA represent different approaches to air filtration.
A conventional HEPA system primarily relies on mechanical filtration through dense fibrous filter media.
TPA uses an active electrical process involving particle charging and electrostatic collection.
TPA® Technology | Conventional HEPA Filtration |
Active electrical filtration | Primarily mechanical filtration |
Electrically charges airborne particles | Captures particles through filter media |
Uses electrostatic collection plates | Uses fibrous filter media |
Collection components can be washable and reusable | Filter media normally requires replacement |
Designed around charge-and-collect principles | Designed around mechanical particle capture |
Air purifier performance depends on multiple factors, including filtration efficiency, airflow, CADR, room conditions, operating time, system design, maintenance, and test methodology.
The important distinction is the filtration mechanism.
TPA and HEPA should therefore be understood as two different technological approaches to particle removal.
No.
TPA uses electrical charging and ionization as part of its purification process, but it should not be understood simply as a conventional room ionizer.
A basic ionizer may release ions into the surrounding air, where they interact with airborne particles.
Airdog's TPA system is designed so that particle charging and collection take place within the purification system. Charged particles are subsequently attracted to dedicated collection plates.
The basic concept is therefore:
Charge → Attract → Collect
Rather than simply charging particles and allowing them to settle onto surrounding surfaces.
Airdog developed TPA around several practical objectives.
TPA uses electrical fields to charge and collect airborne particles rather than relying exclusively on passive mechanical filtration.
The primary particle-collection components can be removed and cleaned for reuse.
Because the collection system is reusable, TPA can reduce reliance on regularly replacing the main particle-collection components.
Instead of making routine filter replacement the central maintenance activity, the system is designed around cleaning and reusing its collection components.
The TPA architecture can be integrated into different air purification products and larger air-treatment applications.
Airdog currently applies its air purification technology across residential, commercial, and other specialized environments.
TPA technology is not limited to a single air purifier model.
Airdog uses TPA as a core technology platform across different air purification applications, including residential and commercial air purification products.
The same technological foundation can also be adapted to larger air-treatment applications.
For example, Airdog's industrial air filtration technology, known as Airdog IEF, applies TPA-based purification principles to larger-scale air filtration and ventilation applications.
This creates a broader technology pathway:
TPA Technology → Air Purifiers → Commercial Air Purification → Industrial Air Filtration
The specific system design, airflow configuration, filtration stages, and performance should always be evaluated according to the individual application.
